Camera Cage for Large DSLR Camera

MVCCL
  • For large size DSLR cameras and mirrorless with battery grip
  • 1/4 and 3/8 mounting points to attach accessories
  • Height adjustable 15mm lightweight rod clamp
  • Reversible handle and cold shoe mount
  • HDMI cable clamp to secure video cables and prevent port damage
CA$ 569.95
Available

Description

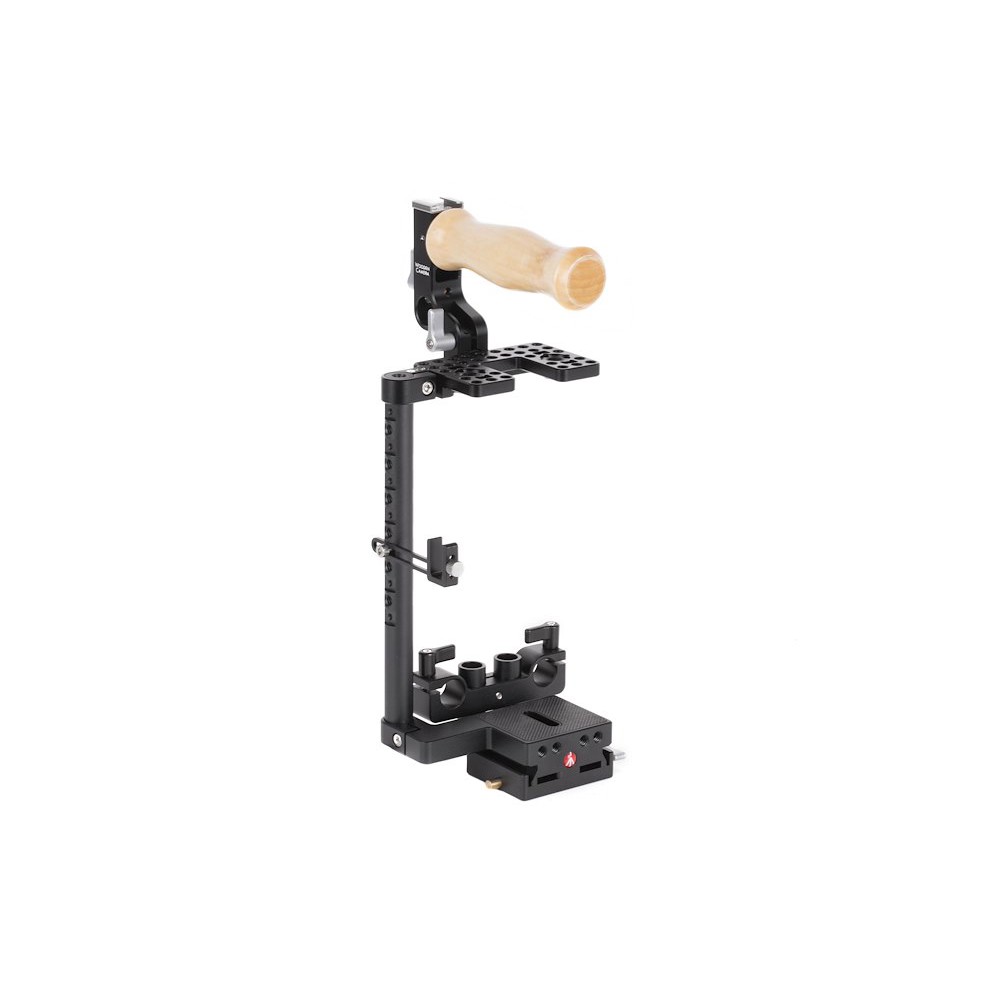

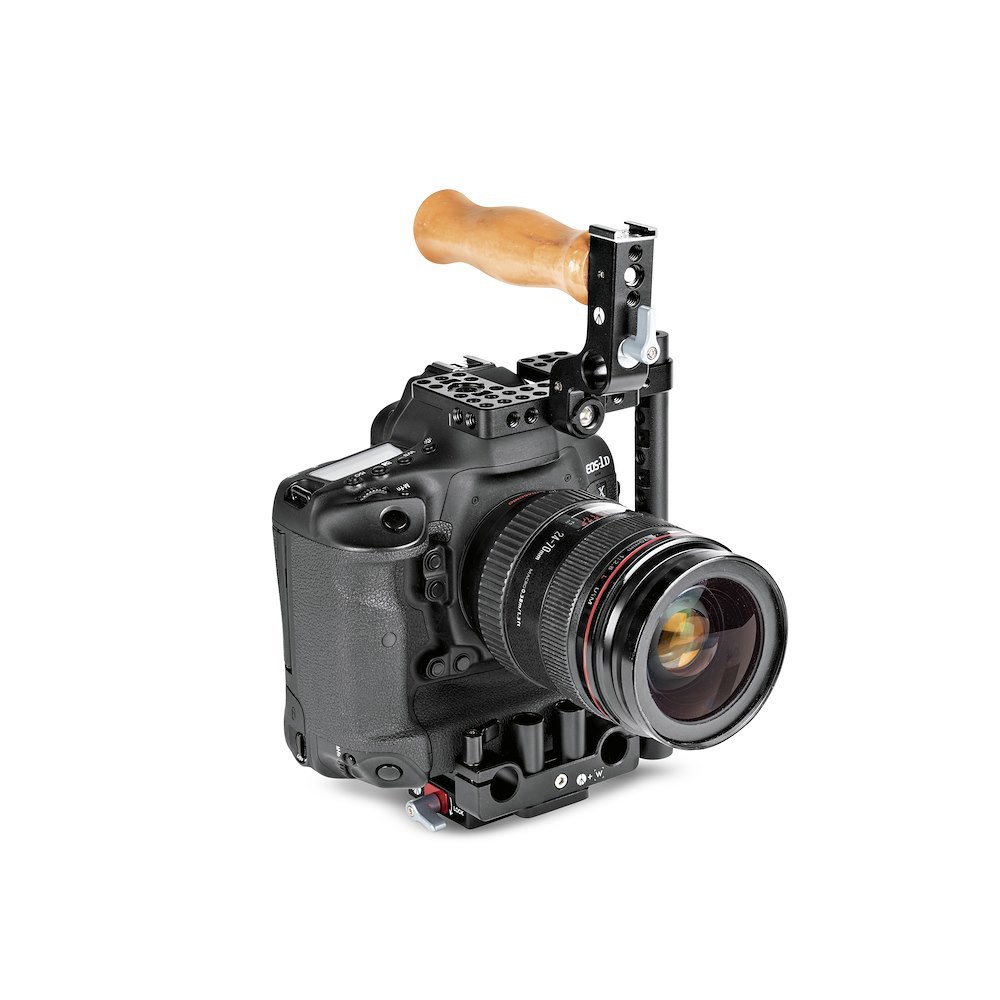

Camera Cage Large is a quick release, height adjustable cage that fits larger DSLR cameras like Canon 1DC, 1DX, 1DXmkII, 1DmkIV, 1DmkIII, NikonD3X, D4, D4s, D5, D800*, D810*, D610* and many cameras with battery grips installed.

The minimalist design and the lightweight structure gives several mounting points for your accessories on the top and side including two anti-rotation attachment compatible with Manfrotto 244MICRO-AR and Arri standard mounting points.

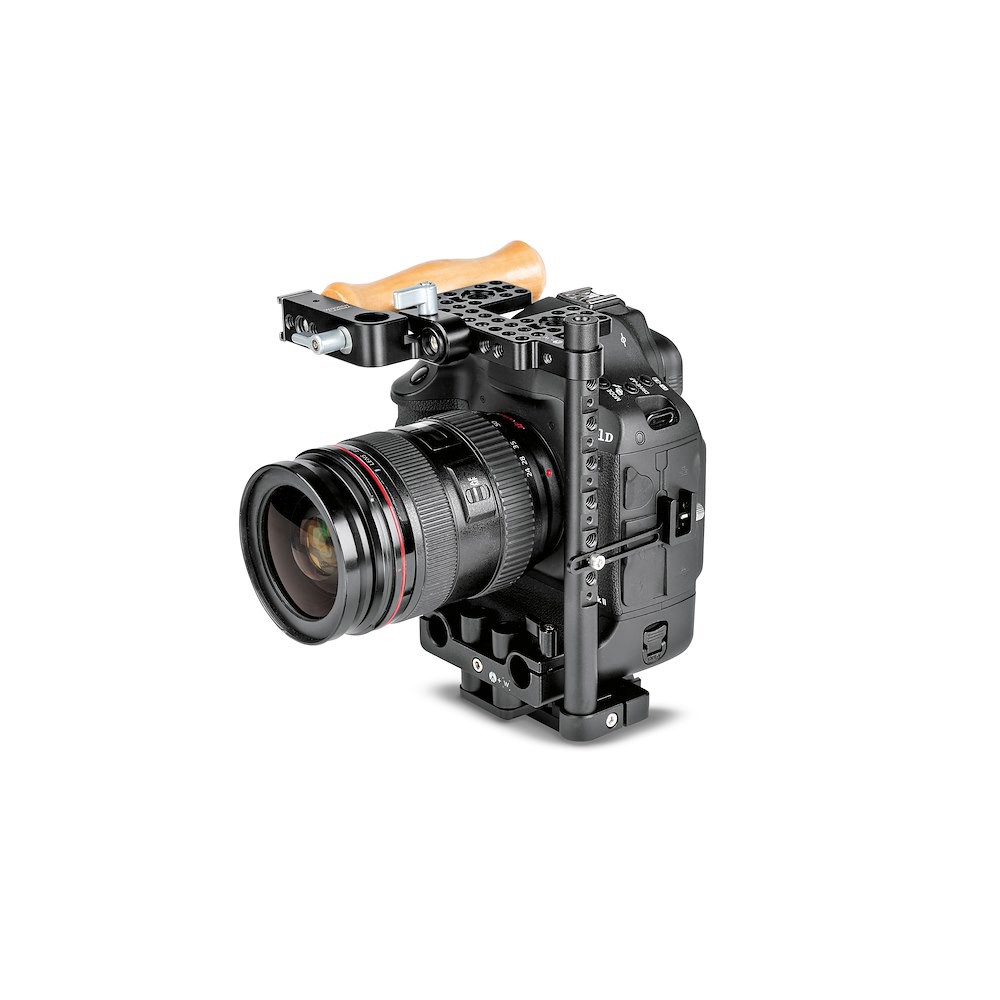

The cage includes a reversible top handle which can be repositioned over the lens area when an XLR adapter is in use. The handle can also fold down when packing your bag and can even be reconfigured onto the left, vertical 15mm rod for a secondary grip. Built into the handle is a cold shoe mount and a 15mm tube clamp for mounting any of Wooden Camera UVF Mount kits used with 3rd party electronic viewfinders. Cameras with fold-out LCD screens can be positioned easily and an included HDMI cable clamp can be mounted to the vertical rod to secure video cables and prevent port damage.

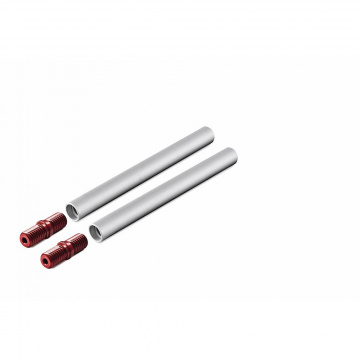

The Camera Cage Large includes a height adjustable 15mm lightweight rod clamp for positioning 15mm rods (sold separately, like Manfrotto MVA523W-1) at the correct distance to the center of the lens, ensuring compatibility with standard matteboxes and follow focus units.

Compatibility for Camera Cage Large:
Mirrorless with battery grip and DSLR cameras up to 180mm (7.1 in) tall
CANON: 1DC, 1DX, 1DXmkII, 1DmkIV, 1DmkIII
NIKON: D3X, D4, D4s, D5, D800*, D810*, D850, D610*

Cameras with installed Battery Grip such as Sony Alpha series or Fujifilm X-H1**

*to better match the form factor of the camera we recommend using the Wooden Camera Unified DSLR Cage Vertical Rod (Medium) as well as the 15mm Baseplate to ensure correct rod height if rod support is needed.

** HDMI cable clamp cannot be used

''The information contained in this fitting chart is for general information purpose only. The information is provided by Vitec Imaging Solutions Spa and while we endeavor to keep the information up to date and correct, we make no representations or warranties of any kind, express or implied, about the completeness, accuracy, reliability, suitability or availability of the informations contained on in this document or avalaible on our websites. Any reliance placed by you on such information is therefore strictly at your own risk. We suggest you to visit our authorized retailers and check the products compatibility and/or the dimensions with your gears to make sure it fits with all your needs.''

Warranty

Warranty: 2 years + 3 year extension

Manfrotto Video Accessories are covered by a Standard Limited Warranty (two years from date of purchase) and are eligible for a free Standard Limited Warranty Extension, upon online product registration, for an additional three years - thus up to five years from date of purchase. For more details or to register your product, please visit: warranty.vitecimagingsolutions.com.

Specifications

Weight

0.59 kg

Accessory Size Height

29.2 cm

Accessory Size Length

11.4 cm

Accessory Size Width

15.2 cm

Material

Aluminum

Safety Payload Weight

5 kg

Technical specifications Full list
