Tripod with fluid video head, Aluminium with Sliding Plate

MVH502A,546BK-1

Product features

  • Smoothly pan and tilt thanks to a fluid drag system
  • Effectively counterbalance the tilt movement
  • Connect and set up fast thanks to the sliding plate
  • Get precise angling with middle telescopic spreader
  • Highest safety standards ensured by UNI/PdR 105:2021 compliance
Globe icon

Designed in Italy

Warranty icon

Highest protection. Backed by warranty. Learn more

Find a retailer
Have total freedom to capture the perfect shot. The ingenious Professional Fluid Video System, Aluminium with Sliding Plate makes your job even easier, thanks to its long list of intuitive design features and high-functioning capabilities. This clever tripod with fluid video head gives you professional quality pan and tilt, extra easy set up, and the freedom to collapse and tidy away into a neat, compact package when you’re done.

This clever piece of kit consists of a fluid video head, and a pro video tripod with a mid-level spreader, giving you everything you need in one box. The mount features a 75mm half ball, so you’ll be able to get into the perfect position in a jiffy. Versatile and smart, this tripod with fluid video head can even support wider HDSLR and interchangeable lens cameras. The fluid drag system counterbalances loads up to 4kg, but it’s capable of holding normal loads up to 10kg, so you’ll never have to worry about wobbling from one angle to the next, whatever equipment you’re using.

Linking your photo head to accessories like external monitors, lights and microphones is a doddle too. Two easy link connectors give you the flexibility to attach whatever the job demands. And when the mount is up, it’s totally secure. It can support up to 20kg, making it super strong, all down to its die cast aluminium crown, and rigid two-stage design. The legs lock firmly in place at just a flick of a handle, spiked rubber feet and rubber overshoes keep a steady grip even on tricky terrain, and it’s versatile enough to pair with a number of different dollies.
Weight: 5.3 kg
Safety Payload UNI/PdR 105:2021: 10 kg
Counterbalance System: Fixed
Counterbalance Weight: 4 kg
Maximum Height: 164.5 cm

Specifications

Weight 5.3 kg
Safety Payload UNI/PdR 105:2021 10 kg
Counterbalance System Fixed
Counterbalance Weight 4 kg
Maximum Height 164.5 cm
Min Height 41 cm
Bubble Spirit Level (No.) 1
Center of gravity 55 mm

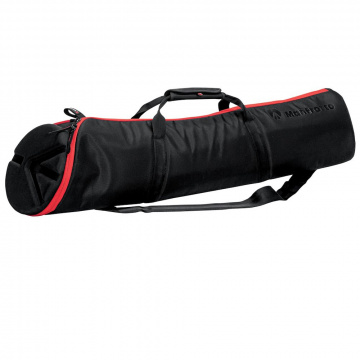

Carrying Bag Included 110125
Center Column no center column
Certifications None
Closed Length 83 cm
Color Black
Top Attachment 1/4″ screw, 3/8″ screw attachmenttype
Ball Flat 75 Ball
Powered by (batteries) 0
Easy Link Yes
Front Tilt -80° / +90° tiltrange
Head Type Video/Fluid Head
Leg Type Twin
Leg Lock Type Flip Lock
Leg Sections 3
Legs Tube Diameter 16, 25 mm
Material Aluminum
Maximum Working Temperature 60 °C
Minimum Working Temperature -20 °C
Pan Bar Included Yes
Pan Drag continuously adjustable from 0 to max level
Panoramic Rotation 360 °
Plate Type 504PLONG
Quick Release Yes
Spreader mid level - variable arm length with 'click stop' set positions
Tilt Drag continuously adjustable from 0 to max level
Accessory Compatibility MVAPANBARM; MVAPANBARL; 502HLV; 509HLV; 114MV; 181B; 165MV;
