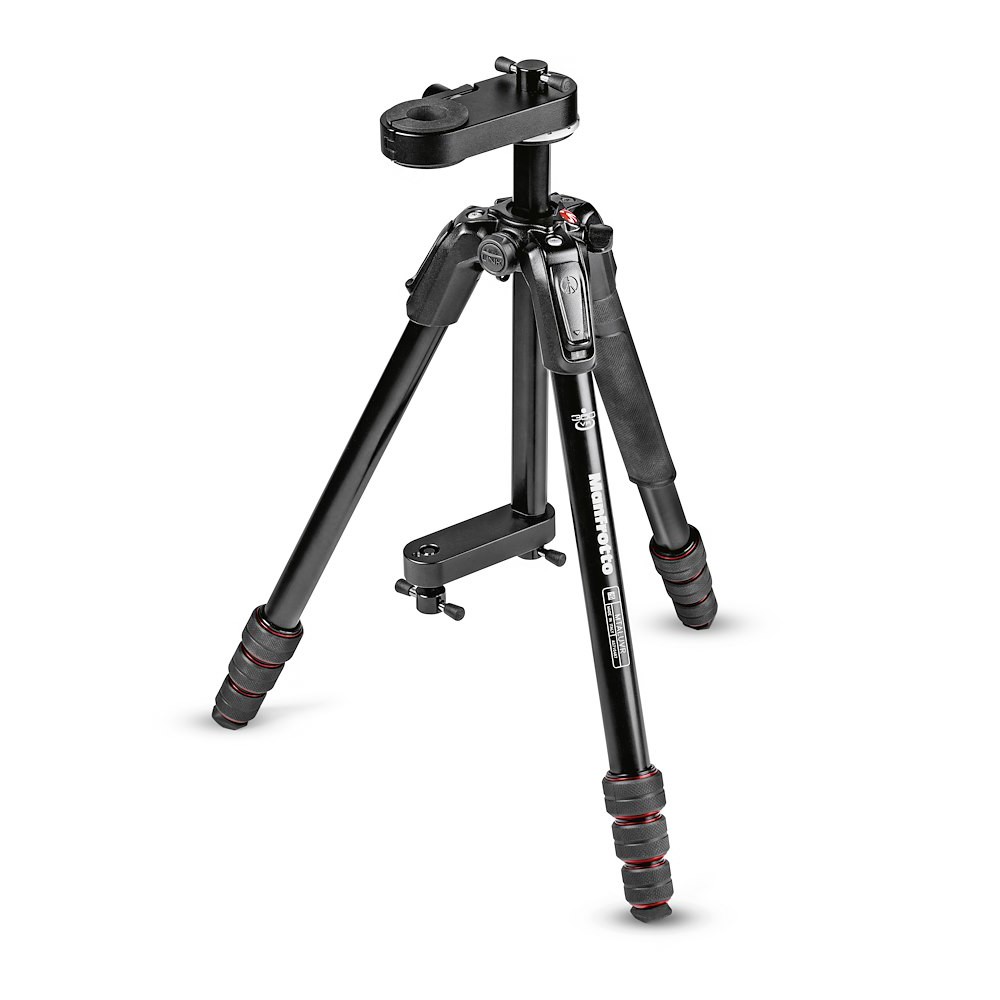

Virtual Reality Aluminium 4-Section Tripod

MTALUVR

Product features

  • Aluminium 4-section tripod
  • Sturdy aluminium extension boom connector included
  • Extremely versatile thanks to 4 leg angle positions
  • Fast operating M-lock mechanism
  • Supports up to 7 kg (tripod only)
Globe icon

Designed in Italy

Warranty icon

Highest protection. Backed by warranty. Learn more

Find a retailer
The VR Big Aluminium Base is the partner of choice for 360° photographers and videographers. It combines professional performance with minimalist design.
This compact, robust aluminium tripod is perfect for use with the VR Medium Aluminium extension boom MBOOMAVR (not included) and comes with a specially designed aluminium adapter to connect the MBOOMAVR extension laterally and achieve maximum stability, even when you need to get several meters off the ground.
The tripod has aluminium legs equipped with the M-lock system - a fast twist-locking mechanism that secures and releases the leg sections - enabling the tripod to be set up in seconds and letting photographers concentrate on the shots they want to capture. The M-lock can be engaged or disengaged with a single 90° rotation movement.
The tripod has 4 independent leg-angle positions for increasing footprint, enabling the base to ensure maximum stability when the 360° camera needs to be high above the ground.
For further technical details, check the specifications and instruction manual in the download area.
Weight: 2.16 kg
Leg Sections: 4
Maximum Height: 151 cm
Min Height: 42 cm
Safety Payload Weight: 7 kg

Manfrotto Photo Accessories, select studio, tabletop and virtual reality supports are covered by a Standard Limited Warranty (two years from date of purchase) and are eligible for a free Standard Limited Warranty Extension, upon online product registration, for an additional eight years - thus up to ten years from date of purchase. For more details or to register your product, please visit: warranty.vitecimagingsolutions.com.

Specifications

Weight 2.16 kg
Leg Sections 4
Maximum Height 151 cm
Min Height 42 cm
Safety Payload Weight 7 kg
Closed Length 45 cm
Maximum Height (with Center Column Down) 127 cm
Carrying Bag Included none
Center Column rapid
Upper Disc Diameter 60 mm
Top Attachment 3/8″ thread female with AR, 3/8″ screw attachmenttype
Color Black
Easy Link Yes
Leg Type Single
Leg Angles 25°,46°,66°,88°
Leg Lock Type Twist Lock
Legs Tube Diameter 15.5, 19, 22.5, 26 mm
Material Aluminum
Maximum Working Temperature 60 °C
Minimum Working Temperature -30 °C
Accessory Compatibility Pole adapter for tube Ø26
